Project Description

Wireless Alarm System

Introducing Hemlarm Kit 5

Alarm system specifically engineered for home security to detect unauthorized entry and intrusion into your home or residential area.

  • Sleek Design
  • Simple set up
  • Wireless Technology
  • Ideal for Home Security

Buy Now

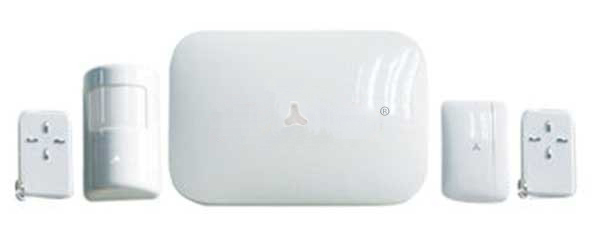

The Kit includes

Main Control Panel

Built in siren will sound when alarm is activated. Family members are notified via auto dialing preset phone numbers

Wireless Remote Control

Control your security system whether you are home or away. Press the emergency button to send an emergency signal to the control panel.

Wireless P.I.R. Motion Detector

Designed to sense human movement. Advanced fuzzy logic chip and intelligent
analysis distinguish signal between body movement and interference to minimize false alarms

Wireless Door/Window Sensor

Transmits signal when the magnet mounted near the sensor is moved away.The tamper protection ensures that sabotage attempts to move the sensor will result in an alarm activation

Technical Data

Main Control Panel

Power Supply AC 110~240V/50~60Hz – DC 12V/1000mA

GSM Working Frequency

850/900/1800/1900MHz

Alarm Maximum Current

≥300mA

Internal Siren

90dB

Radio Frequency

315MHz/433MHz (± 75KHz)

Size (LxWxH)

18×12.6×2.6cm

Wireless Remote Control

• Multi-purpose key for arming, disarming, arming stay and emergency call.
• Low battery led light
• SOS Emergency Call button

Wireless P.I.R. Motion Detector

Wireless Transmit Distance: ≤80 m
Detector Dimensions (LxWxH): 90x52x36.5mm
Bracket Dimensions (LxWxH): 48x26x29mm

Wireless Door/Window Sensor

Dimensions (LxWxH): 48x71x18mm
Alarm Current: ≤43mA
Power Supply: DC1.5V/AA battery

Power Adaptor

The built-in 7.4V/100mA rechargeable battery enables the system to work for 16 hours in the event of a power failure

Internal Battery Backup

Lithium Battery 7.4V/1000mAh
Buy Now
