Lightweight multi-purpose target locator

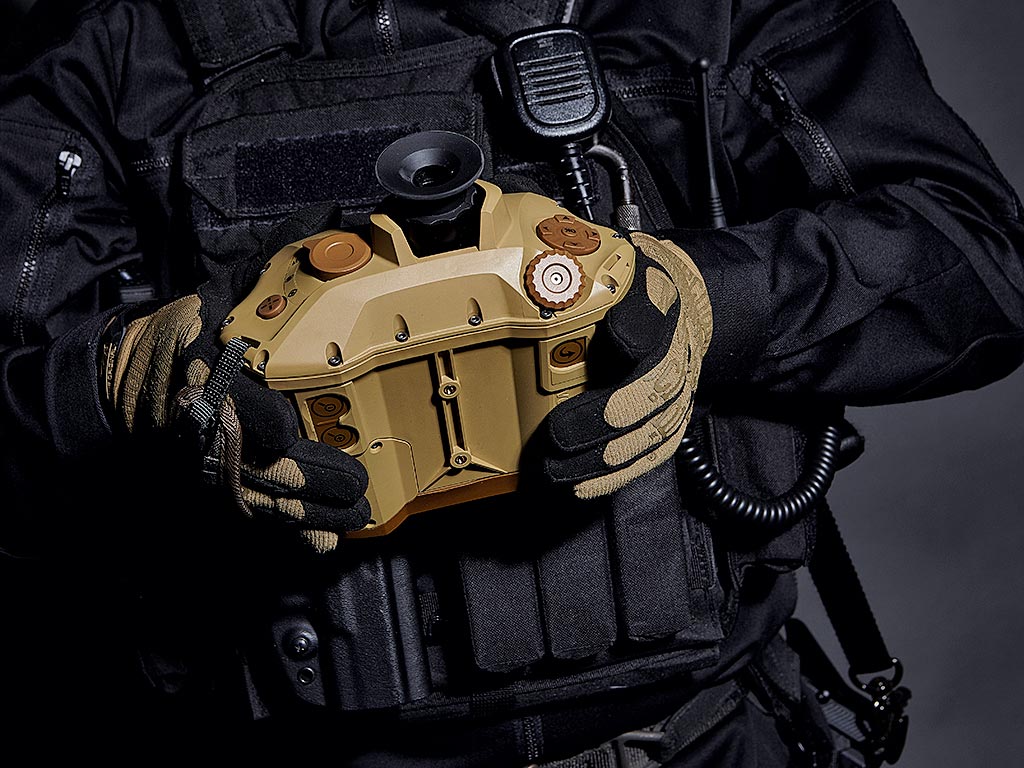

Introducing MOSKITO TI
The MOSKITO TI is the lightest, most capable target locater in its class. It combines higher usability, lower weight and broader capabilities than any device in its class. Incorporating Vectronix performance history, it is reliable in all conditions and gives dismounted infantry and special forces exactly what they need for full 24-hour situational awareness.
BROADER CAPABILITIES
Features
MOSKITO TI
Technical Data
Magnification 6x
Field of view 6.25°/111mil
Field of view 6.25°/111mil
Sensor Resolution VGA, 640 x 480pixels
Field of view 12°/213mil
Field of view 12°/213mil
Sensor Resolution SXGA, 1280 x 1024 pixels
Field of view 6.25°/111mil
Field of view 6.25°/111mil
Laser type
1550 nm, class 1 eyesafe per
IEC 60825-1 Ed 2.0 (2007-03)
1550 nm, class 1 eyesafe per
IEC 60825-1 Ed 2.0 (2007-03)
Range capability 10m to 10,000m
Accuracy ± 2 m
Azimuth accuracy ± 10 mil / ± 0.6°
with PPS calibration on tripod,
typical ±5mil/±0.3°
with PPS calibration on tripod,
typical ±5mil/±0.3°
Inclination accuracy ±3mil/±0.2°
Lasertype
840 nm, class 1 eye-safe per IEC 60825-1 Ed 2.0 (2007-03), ANSI Z 136.1 (2007)
840 nm, class 1 eye-safe per IEC 60825-1 Ed 2.0 (2007-03), ANSI Z 136.1 (2007)
Type NAVSTAR GPS, Galileo, GLONASS, military GPS
Type SVGA, 800 x 600pixels
Standard interface RS-232, USB 2.0 OTG, Ethernet
Optional Bluetooth
External GPS capability Rockwell Collins PLGR+96/PLGRII/DAGR
Optional Bluetooth
External GPS capability Rockwell Collins PLGR+96/PLGRII/DAGR
Standard, on board 3 V lithium battery type CR123A, 4x required
Battery capacity (20°C) >6h (dependent on mission profile)
Dimensions (L x W x H) 130 x 170 x 80 mm
Weight < 1.3 kg
Weight < 1.3 kg
